BA-FC24 1927nm Fractional Thulium Laser Machine: A Breakthrough in Skin Rejuvenation Technology

1927nm thulium laser machine ba-FC24

Introduction: The Dawn of Thulium Laser Technology

Thulium laser technology harnesses the unique spectral properties of thulium, delivering high water absorption to gently heat skin tissue and promote natural healing. This innovative approach positions the BA-FC24 as a game-changer in aesthetic treatments.

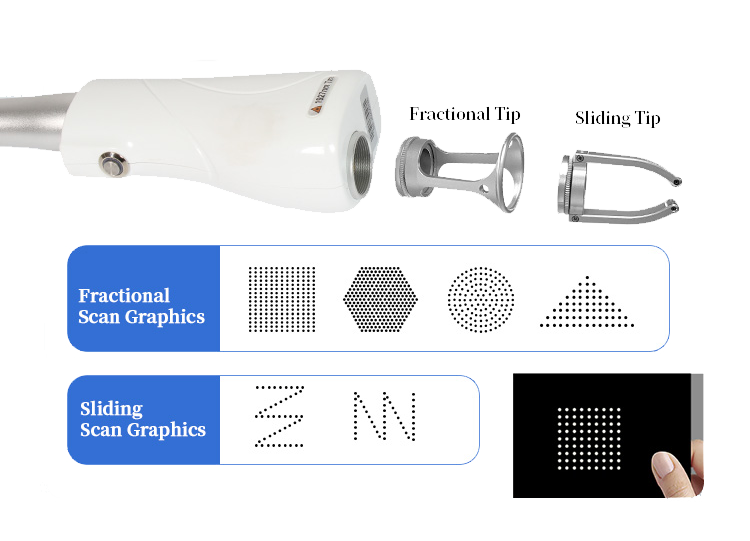

Developed by BambooLaser, the BA-FC24 is engineered for skin rejuvenation. It operates at a 1927nm wavelength with a fractional output, ensuring even energy distribution. The device features two modes—Fractional Mode and Sliding Mode—paired with dual applicators for efficient and intelligent treatments. The fractional applicator focuses the laser into tiny 0.1-0.15mm spots for precise, non-ablative or micro-ablative effects, while the sliding mode enables rapid coverage of larger areas like the face or body.

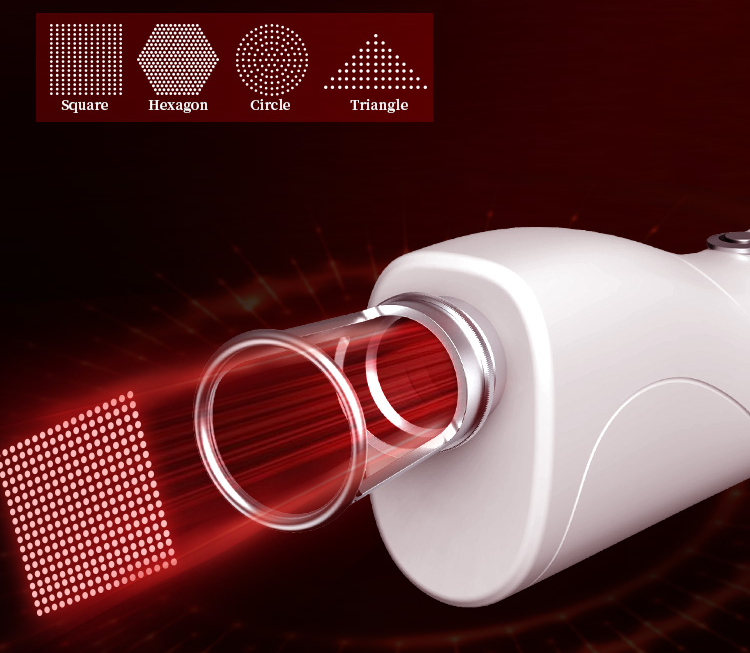

The BA-FC24 supports multiple Fractional Scan Graphics, targeting deep, medial, and superficial skin layers while addressing imperfections such as pigmentation or uneven texture. Its adjustable energy density and exposure time allow for tailored treatments: longer exposure creates a micro-ablative effect for stubborn issues, while lower energy forms a thermal coagulation band to boost collagen and tighten skin. The user-friendly interface offers real-time parameter adjustments, making it accessible for operators.

ba-fc24 thulium laser machine principle

Product Features: Comprehensive Solutions for Diverse Skin Concerns

The BA-FC24 is designed to meet clinical demands, offering a wide range of applications from acne treatment to skin tightening. Its 1927nm wavelength targets water absorption peaks, penetrating the epidermis to reach the dermis, stimulating fibroblast activity and promoting collagen and elastin regeneration. Below are its core features:

1. Acne Treatment and Scar Repair

Acne is a common concern, particularly among younger individuals. The BA-FC24’s fractional mode targets Propionibacterium acnes, reducing inflammation while stimulating new collagen to smooth pitted scars. A clinical trial showed a 50%+ reduction in acne scar severity scores with 1927nm thulium laser treatments. Beyond antibacterial action, it regulates sebum production to prevent recurrence. Patients report a 70% improvement in skin smoothness with no significant acne flare-ups. The device also excels in treating burn or trauma scars, precisely targeting melanocytes to fade redness.

2. Wrinkle Reduction and Anti-Aging

Wrinkles stem from collagen loss, and the BA-FC24’s micro-thermal coagulation effect activates the dermis to rebuild collagen networks. Studies indicate that 3-5 sessions can reduce fine line depth by 40%-60%. Its non-ablative nature is ideal for dynamic wrinkles like crow’s feet and forehead lines, delivering natural, gradual improvements. The sliding mode allows large-area facial treatments in just 15-20 minutes, ensuring high patient comfort.

3. Pigmentation and Spot Removal

Pigmentation, a prevalent issue in Asian skin, is effectively addressed by the 1927nm wavelength’s high melanin absorption, breaking down melasma, freckles, and sunspots. A Korean study reported a 35% reduction in pigmentation index with a recurrence rate below 10%. The BA-FC24’s scan patterns ensure even coverage, preventing patchy results. Clinical cases show significant fading of post-sun pigmentation within 4 weeks, achieving a uniform complexion.

4. Enlarged Pores and Oil Control

Large pores detract from skin texture. The BA-FC24 uses thermal effects to shrink sebaceous glands and reduce oil production while tightening surrounding tissue. Reports from Liton Laser indicate that low-energy scanning can reduce pore size by 30%-50%. Ideal for oily skin, it improves T-zone shine, enhancing makeup longevity.

5. Skin Tightening and Overall Rejuvenation

The device promotes epidermal renewal, addressing roughness and laxity. A pilot study combining radiofrequency microneedling showed a 45% increase in skin elasticity. Additional benefits include strengthened skin barriers, reduced sensitivity, and enhanced drug delivery (e.g., retinoids).

The BA-FC24’s versatility stems from its intelligent mode switching, suitable for all skin types. Clinical benefits include rapid results (visible in 1-2 weeks), minimal side effects (temporary redness), and long-term effects (6-12 months). It has become a benchmark for skin rejuvenation in professional settings.

1927nm thulium laser before after

Working Principle: The Science of Water Absorption and Micro-Trauma Rejuvenation

The BA-FC24’s effectiveness lies in the physical properties of the 1927nm thulium laser. Positioned in the near-infrared spectrum, this wavelength aligns with water absorption peaks (1900-2000nm), with 90% of energy absorbed by water in the epidermis and shallow dermis. Unlike other lasers, thulium’s “water affinity” ensures even heat distribution, minimizing deep-tissue overheating.

Fractional Mode Principle: The laser emits microscopic treatment zones (MTZs), each 0.1-0.15mm in diameter, with adjustable spacing. These MTZs create controlled micro-injuries, while surrounding healthy skin acts as a “healing reservoir” to accelerate repair. In non-ablative settings, low energy density (5-10 J/cm²) forms thermal coagulation bands, heating tissue to 60-70°C to activate heat shock proteins (HSP) and stimulate collagen I/III and elastin production. Micro-ablative mode extends pulse duration (>10ms), vaporizing superficial epidermal layers to remove aged cells and promote regeneration.

Sliding Mode Principle: The applicator moves continuously, covering large areas with uniform energy density (2-5 J/cm²), ideal for preventive care. Together, these modes address scars at deeper layers, refine texture at mid-layers, and fade pigmentation superficially.

Biologically, the treatment triggers the three phases of wound healing: inflammation (cytokine release), proliferation (collagen deposition), and remodeling (fiber restructuring). Studies show 1927nm lasers upregulate TGF-β signaling, boosting collagen density by 200%. Low scattering ensures energy targets specific areas, reducing collateral thermal damage.

Safety features include a built-in cooling system and automatic skin-type calibration, suitable for Fitzpatrick III-V skin types. Customizable parameters (e.g., 1-20ms pulse width) minimize pigmentation risks. The BA-FC24 exemplifies “micro-trauma + regeneration,” blending scientific precision with practical outcomes.

Comparison with CO2 Laser: Non-Invasive vs. Deep Ablative Approaches

The CO2 laser (10600nm), a “gold standard” for skin resurfacing, shares functional overlap with the 1927nm thulium laser but differs significantly in principle and clinical outcomes. Both utilize fractional technology to address acne, wrinkles, and pigmentation, but their approaches diverge.

Similarities: Both are fractional lasers, creating MTZs to promote collagen regeneration. They achieve comparable results for scars (40-70% improvement) and wrinkles (50% depth reduction). Clinical trials show 80% patient satisfaction for facial photoaging with both, requiring 3-6 sessions spaced 4 weeks apart, with effects lasting 1-2 years.

Differences:

  • Wavelength and Penetration Depth: CO2’s far-infrared wavelength is highly water-absorbent but penetrates shallowly (0.05-0.1mm), excelling in epidermal ablation. Thulium’s near-infrared wavelength reaches 0.2-0.5mm into the shallow dermis, ideal for mid-layer concerns. CO2 suits deep scars; thulium excels in pigmentation and pores.
  • Invasiveness and Downtime: CO2 is ablative, vaporizing the epidermis, resulting in 7-14 days of downtime (scabbing, redness). Thulium is non-ablative or micro-ablative, with only 1-3 days of mild redness, allowing immediate makeup application, making it ideal for busy lifestyles.
  • Side Effects and Safety: CO2 carries higher risks, including thermal necrosis, pigmentation rebound (20% in Asian skin), and infection. Thulium’s side effects are mild (transient pain, erythema), comparable to Er:YAG but safer than CO2, with less thermal diffusion and scarring risk.
  • Efficacy and Applications: CO2 offers stronger skin tightening (60% elasticity boost) for severe photoaging; thulium is more precise for pigmentation (45% melasma improvement) and supports drug delivery. Thulium treatments are more cost-effective per session with simpler maintenance.

In summary, thulium lasers prioritize “gentle efficiency,” while CO2 delivers “deep intensity.” The choice depends on patient needs: thulium for minimal downtime, CO2 for stubborn issues.

Clinical Evidence and Real-World Cases: Data-Driven Efficacy

Multiple studies validate the BA-FC24’s performance. A prospective study (n=30, Asian skin types) reported a 55% reduction in wrinkle scores and 40% pigmentation improvement after 1927nm thulium laser treatment, with high safety and no serious adverse events. Another trial (n=20) on acne showed a 60% reduction in inflammation and improved scar flatness after 4 sessions.

In pigmentation, a Korean multicenter study (n=50) confirmed a 70% efficacy rate for melasma, surpassing traditional IPL. Pilot cases combining radiofrequency showed doubled rejuvenation effects, with a 50% increase in elasticity.

Real-world case: A 35-year-old female with melasma and fine lines underwent 3 BA-FC24 sessions (4-week intervals). Before-and-after comparisons showed 80% spot fading and 50% wrinkle reduction, with a 2-day recovery. Another male with oily skin saw significant pore reduction, boosting confidence. These findings, sourced from PubMed and other databases, underscore reliability.

The BA-FC24 1927nm Fractional Thulium Laser Machine redefines skin treatment with its robust features, scientific foundation, and optimized alternative to CO2 lasers. More than a device, it’s a gateway to youthful skin. Contact BambooLaser for global-quality service and start your rejuvenation journey today!
