Professional Non-Invasive Selective Microwave Fat Reduction & Skin Tightening Device – Complete Technical Overview
The BA-CW23 CoolWave Body Contouring System is the 2025 flagship professional device combining medical-grade 24.5 MHz selective microwave thermolipolysis with a real-time 5–20 °C dynamic contact cooling system. It is specifically engineered for aesthetic clinics and medi-spas seeking a safe, comfortable, and highly effective non-invasive solution for localized fat reduction, body contouring, and skin firming.
1. Technology Overview & Working Principle
1.1 Clinical Advantages
- Precise depth targeting (3 / 7 / 15 mm)
- Real-time epidermal cooling for maximum comfort and safety
- Permanent adipocyte apoptosis (not just volume reduction)
- Zero downtime – clients can resume normal activities immediately
- Triple efficacy: fat reduction + skin tightening + cellulite improvement in a single session
1.2 Dual-Core Technology
(1) Selective Microwave Thermolipolysis (24.50 MHz ± 50 MHz)

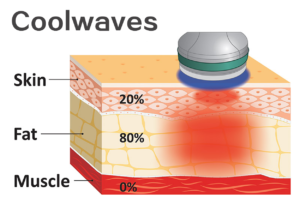

Fat tissue has significantly lower water content than the epidermis and dermis, giving it a much higher absorption coefficient at this specific frequency. Microwave energy is almost exclusively absorbed by subcutaneous adipose tissue located 3–15 mm beneath the skin surface. This triggers rapid molecular oscillation, elevating local temperature to 45–50 °C within the fat layer, irreversibly damaging the adipocyte membrane and initiating programmed cell death (apoptosis). Apoptotic fat cells are gradually cleared by macrophages and eliminated via the lymphatic system over 1–3 months, resulting in a permanent reduction in the number of fat cells.
(2) Dynamic Contact Cooling (5–20 °C)
The handpiece integrates a high-efficiency semiconductor cooling module with a sapphire contact window. During treatment, epidermal temperature is continuously maintained between 5–20 °C (operator-adjustable), creating a protective “cold barrier” while allowing deep volumetric heating of fat. This dramatically improves client comfort, eliminates burn risk, accelerates post-treatment recovery, and reduces erythema/edema.
1.3 Collagen Remodeling & Skin Tightening Mechanism
The controlled thermal effect in the upper dermis (42–45 °C) activates heat-shock proteins (HSP47 & HSP70), stimulating fibroblast activity and boosting type I & III collagen synthesis. Clinical studies show an average 15–25 % increase in dermal thickness, delivering visible skin firming and cellulite improvement alongside fat reduction.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BA-CW23 |
| Microwave Frequency | 24.50 MHz ± 50 MHz (medical grade) |
| Treatment Depth | 3 mm / 7 mm / 15 mm |
| Maximum Output Power | 200 W (typical clinical range 20–80 W) |
| Cooling System | Semiconductor dynamic contact cooling 5–20 °C |

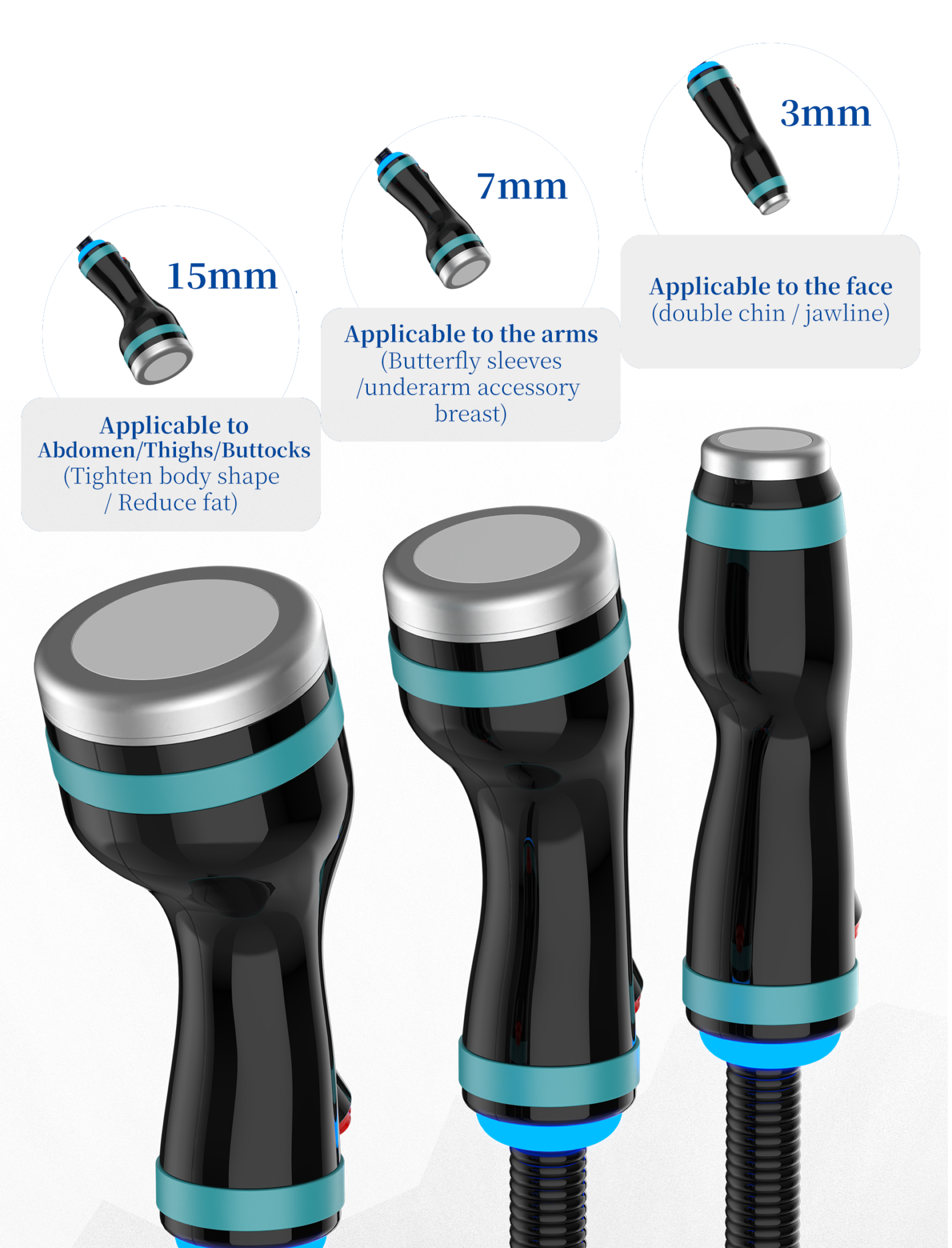

| Handpieces | 3 mm (face) ×1, 7 mm (submental/arms) ×1, 15 mm (body) ×2 |
| Display | 12.1-inch HD touchscreen |
| Input Voltage | AC 110–220 V, 50/60 Hz |
3. Clinical Applications & Recommended Protocols
3.1 Treatment Areas
- Face: double chin, jawline, buccal fat
- Body: abdomen, love handles, thighs (inner/outer), buttocks, upper arms (bat wings), back rolls, bra fat
3.2 Suggested Session Duration & Course
| Fat Thickness / Goal | Session Duration | Typical Areas | Recommended Course |
|---|---|---|---|
| Mild (<2 cm) | 15–20 min | Arms, submental, neck | 4–6 sessions, every 2–3 weeks |
| Moderate (2–3.5 cm) | 20–25 min | Flanks, buttocks | 6–8 sessions, every 2–4 weeks |
| Severe (>3.5 cm) + Firming | 25–30 min | Abdomen, thighs | 6–10 sessions, every 3–4 weeks |
First session recommendation: Begin at 20–40 W and cooling 8–12 °C, titrate upward based on tolerance.
4. Contraindications
4.1 Absolute Contraindications
- Pregnancy or breastfeeding
- Pacemakers, metal implants, or prosthetic devices in treatment area
- Severe cardiac conditions, coagulation disorders
- Active malignancy
- Acute skin infection, open wounds, active dermatitis
- Severe dyslipidemia or hepatic steatosis in acute phase
- Known allergy to coupling gel
4.2 Relative Contraindications (physician evaluation required)
- Uncontrolled diabetes (fasting glucose >8 mmol/L)
- Keloid or hypertrophic scarring tendency
- Recent (<3 months) lipolysis or surgical procedures in the same area
- Cryoglobulinemia or extreme cold sensitivity
5. Standard Operating Protocol
- Power on → 30-second self-check
- Select mode (Fat Reduction / Skin Tightening) → set power, duration, cooling temperature
- Cleanse skin → apply 2–3 mm layer of microwave coupling gel
- Choose appropriate handpiece → maintain full contact and continuous gliding motion (2–3 cm/sec)
- Monitor skin response in real time; pause if discomfort occurs
- Complete session → wipe skin → disinfect handpiece → document treatment
Key Operating Notes
- 100 % skin contact at all times (no hovering)
- Avoid prolonged stationary positioning over bony prominences or lymph nodes
- Pause every 5 minutes for 10–15 seconds to assess skin reaction
6. Post-Treatment Care Guidelines
6.1 Immediate Care (0–24 hours)
- No hot compresses, saunas, or intense exercise
- Delay showering for 4–6 hours
- Avoid alcohol-based or exfoliating products
6.2 Long-Term Care (1–3 months)
- Hydrate well (1.8–2.5 L water daily)
- Follow a balanced, high-protein, low-GI diet
- Light cardio after 1 week; resistance training after 2 weeks
- Strict sun protection on treated areas
7. Expected Results Timeline
| Timeline | Visible Changes |
|---|---|
| Immediate | Instant tightening sensation, smoother texture |
| 1–2 weeks | Initial fat metabolism; improved contour definition |
| 4–6 weeks | Noticeable circumference reduction; cellulite improvement |
| 8–12 weeks | Peak results (average 6–15 cm total loss per area) |
| 6–18 months | Sustained skin-firming effect |
Destroyed adipocytes do not regenerate. Long-term maintenance depends primarily on lifestyle and weight stability (±5 kg).
8. Device Maintenance & Warranty
- Host machine: 1-year warranty
- Accessories: 6-month warranty
- Magnetron replacement recommended after 2000 cumulative hours
- Professional calibration of microwave power and cooling system every 3 months advised
9. Frequently Asked Questions (FAQ)
Q1: How does the BA-CW23 differ from CoolSculpting or radiofrequency devices?
A: Unlike cryolipolysis (which freezes fat and requires 3–7 days recovery) or traditional RF (primarily skin tightening), the BA-CW23 uniquely combines selective microwave fat apoptosis with real-time epidermal cooling, delivering superior comfort, zero downtime, and simultaneous fat reduction + collagen remodeling.
Q2: Is the treatment painful?
A: Most clients report only a pleasant deep warming sensation beneath a cool surface. The dynamic cooling keeps epidermal temperature at 5–15 °C, virtually eliminating discomfort.
Q3: How soon are results visible and how long do they last?
A: Immediate tightening is felt the same day. Visible contouring begins at 1–2 weeks, peaks at 8–12 weeks. Because adipocytes are permanently eliminated, results are long-lasting with stable weight.
Q4: How many sessions are typically needed?
A: 4–10 sessions depending on initial fat thickness. Maintenance treatments every 6–18 months are recommended for optimal skin firmness.
Q5: Is the BA-CW23 safe?
A: Yes. The device holds US FDA, EU CE, Taiwan TFDA, and Korea MFDS medical device clearances and has an excellent clinical safety profile when operated by trained professionals.
The BA-CW23 Coolwave System represents the gold standard in 2025 non-invasive body contouring technology — delivering clinically proven fat reduction, skin tightening, and cellulite improvement with unmatched comfort and zero downtime.
For detailed technical white papers, clinical case studies, and institutional cooperation plans, please feel free to contact us.
