BA-FC23: CO2 Fractional Laser Machine

Classic Fractional CO2 Laser Skin Resurfacing System

The BA-FC23 is suitable for treating moderate-to-severe acne scarring, deep wrinkles, and significant photoaging. It delivers remarkable results in skin rejuvenation and anti-aging treatments, making it a classic model chosen by many high-end beauty salons.

Suitable for:

Aesthetic clinics, high-end beauty salons, medical aesthetic clinics, and product upgrades for retail outlets.

BA-FC23 removal acne swcars
BA-FC23 removal freckles
BA-FC23 Skin firming
BA-FC23 removal stretch wrinkles
BA-FC23 removal scars
BA-FC23 Vaginal tightening
BA-FC23 removal stretch marks

Principles of BA-FC23 Fractional CO2 Laser Therapy

Fractional Laser Skin Resurfacing

the wavelength of CO2 laser is 10.6μm, which can be fully absorbed by human biology tissue( all the skin are avaliable).

The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.

BA-FC23 fractional co2 laser principle

Vaginal Tightening

The energy from the BA-FC23 CO2 fractional laser is absorbed by water molecules in the vaginal mucosa, inducing controlled thermal injury. This causes immediate contraction and remodeling of collagen fibers while simultaneously activating fibroblasts to initiate the wound-healing process, thereby gradually increasing tightness, thickening the mucosal layer, and restoring vaginal elasticity.

BA-FC25 Fractional co2 laser beauty machine vaginal tightening principle

BA-FC23 Working Handles

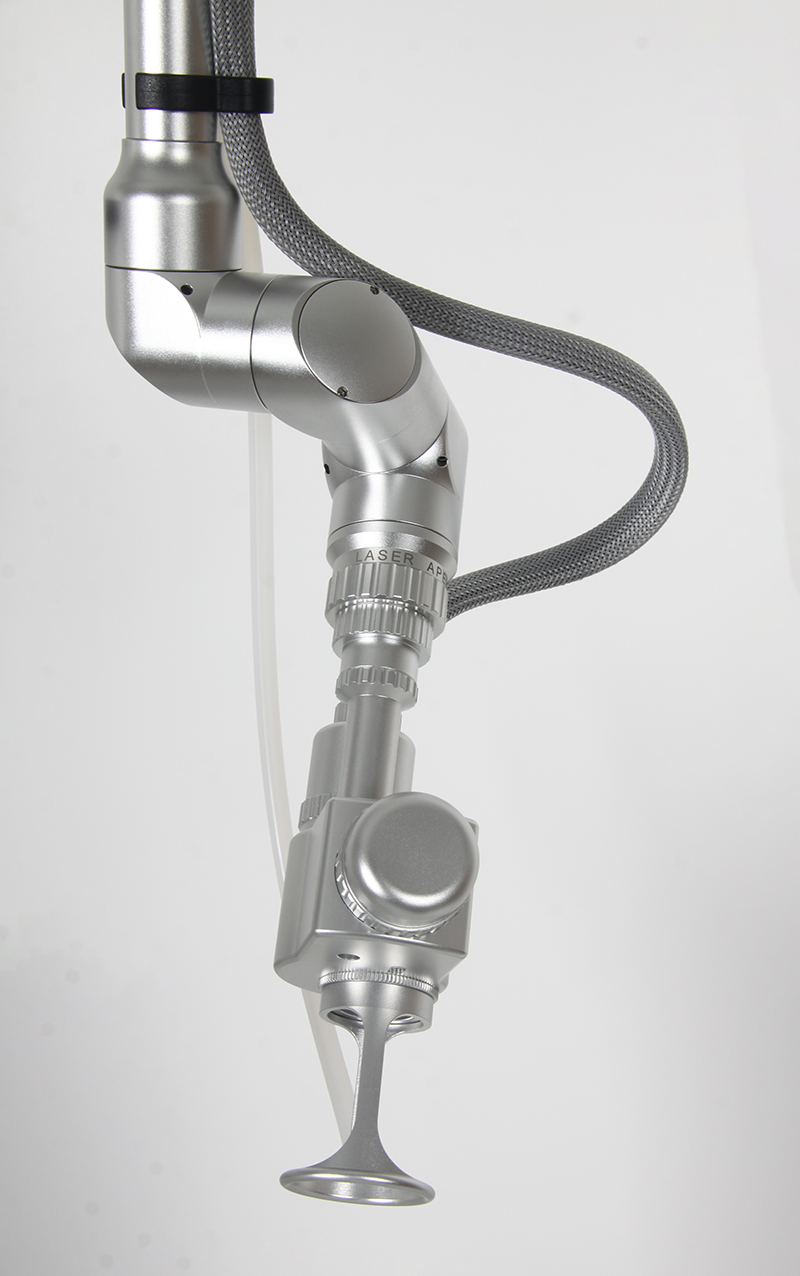

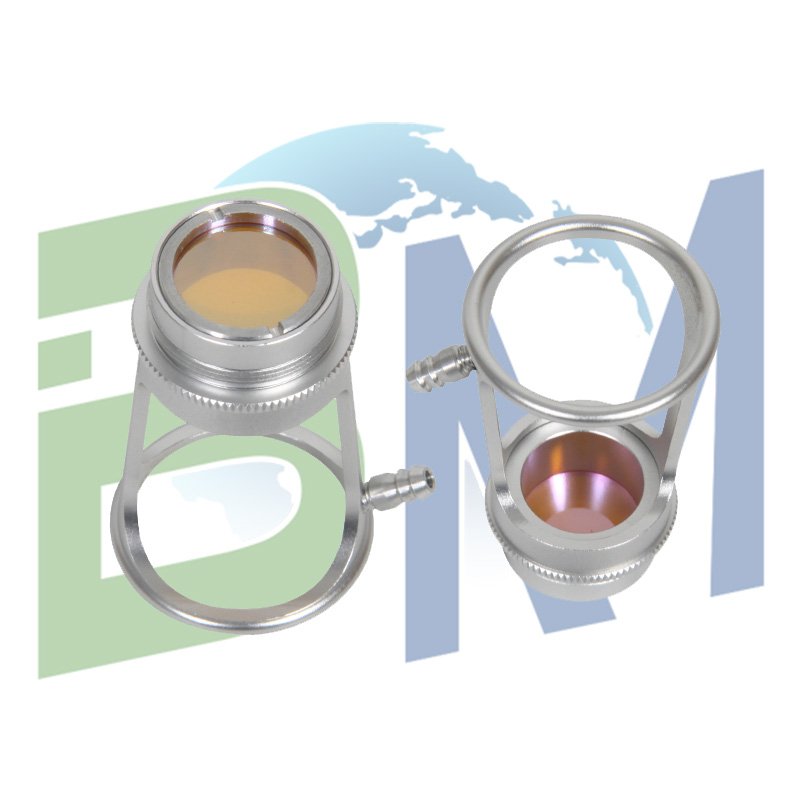

BA-FC23 fractional handle

fractional head

Applications: Reduce all kinds of scars ( hypertrophic scars, depressed scars), age pigmented freckles, wrinkles, skin rejuvenation, remove acne and acne marks, stretch marks.

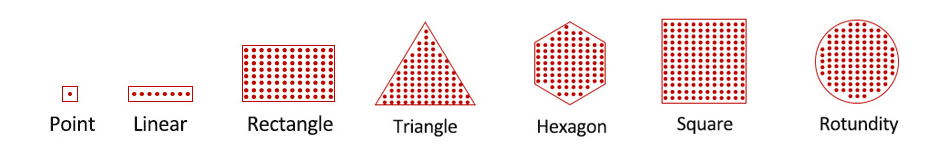

BA-FC23 fractional co2 laser dots

New upgrade of the Fractional head

Latest Spiral Scan technology: with repeated scanning in a Spiral shape, form a thermal protection area between traditional points and lines, promoting skin healing and shortening skin recovery time. Enhance user's treatment experience.
BA-FC23 fractional co2 upgrade mode
The BA-FC23 offers multiple modes, providing clinical flexibility and safety margins. Users can tailor treatment options such as gentle repair or powerful reconstruction based on the client's skin type, treatment site thickness, lesion depth, and tolerance, without being limited by a single mode.

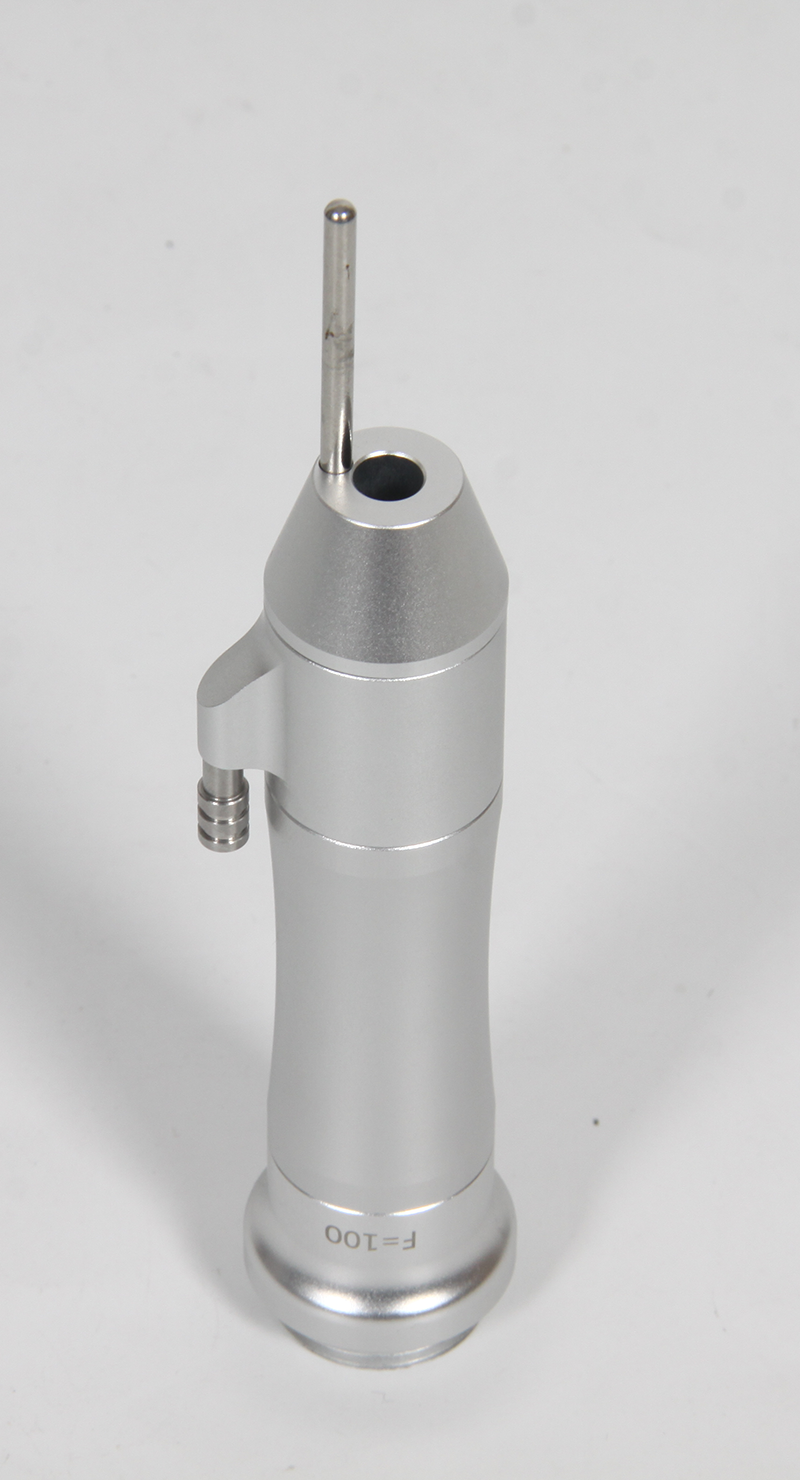

BA-FC23 ultra pulse handle display

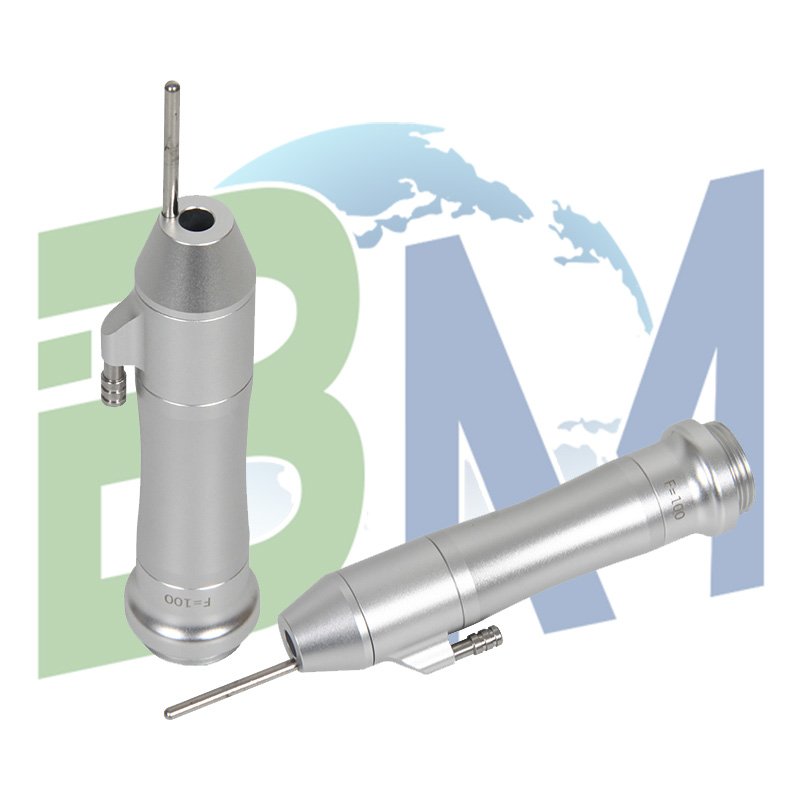

ultra pulse Cutting Head

The Ultra Pulse Cutting Head uses a lens to focus a laser beam into an extremely fine spot (typically 0.1–0.5mm), achieving a "light scalpel" effect. It does not contact tissue, avoiding mechanical traction and cross-infection. While cutting, it coagulates small blood vessels, immediately stopping bleeding, closing lymphatic vessels, and reducing postoperative swelling.
co2 cutting mode: Suitable for the excision of pigmented nevi, warts, syringomas, seborrheic keratosis, etc.
BA-FC25 Fractional co2 laser beauty machine Internal genitalia

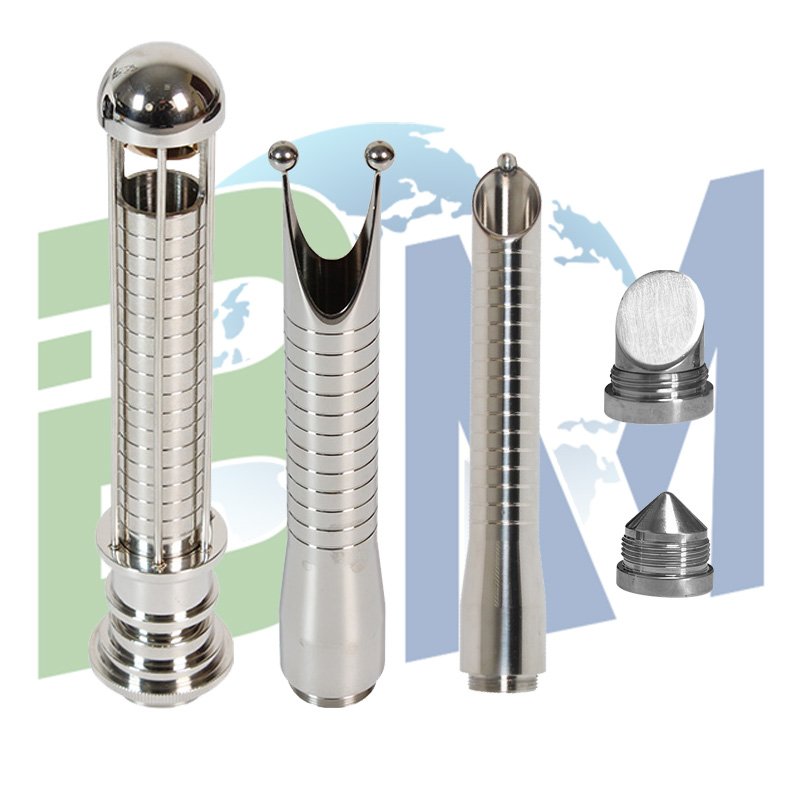

360° vagina Mirror

360° vagina Mirror 360° tightening the vagina and enhancing the elasticity and youthfulness
BA-FC25 Fractional co2 laser beauty machine External genitalia

Cervix Applicator

Vulua Applicator

Improving the texture and tone of the vulva, enhancing its lubrication and comfort
pink vagina: vulva rejuvenation, lightened pigment, and pink labia parts, the delicate degree to improve by 70%

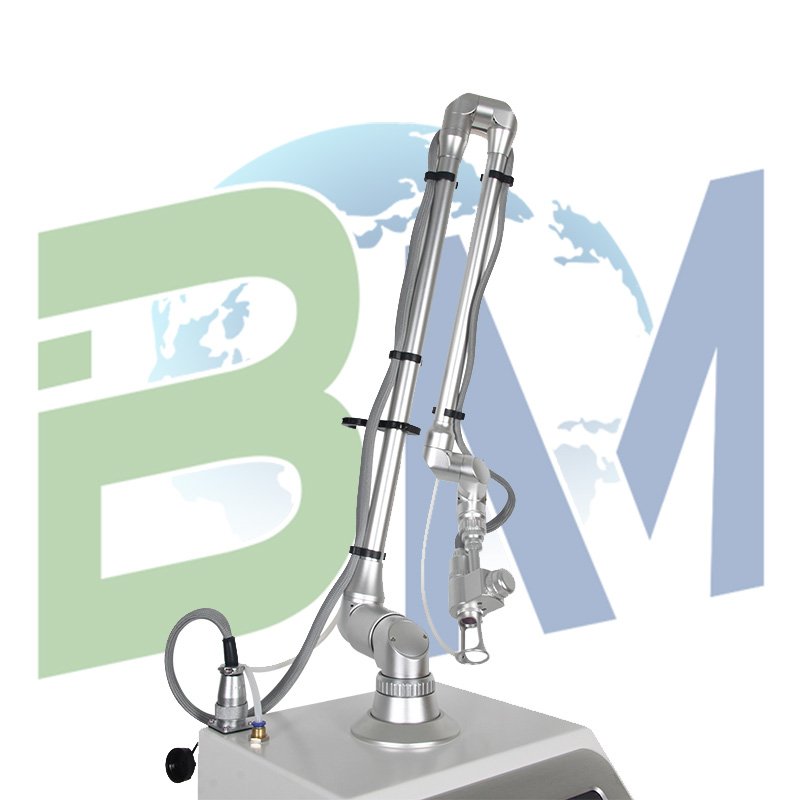

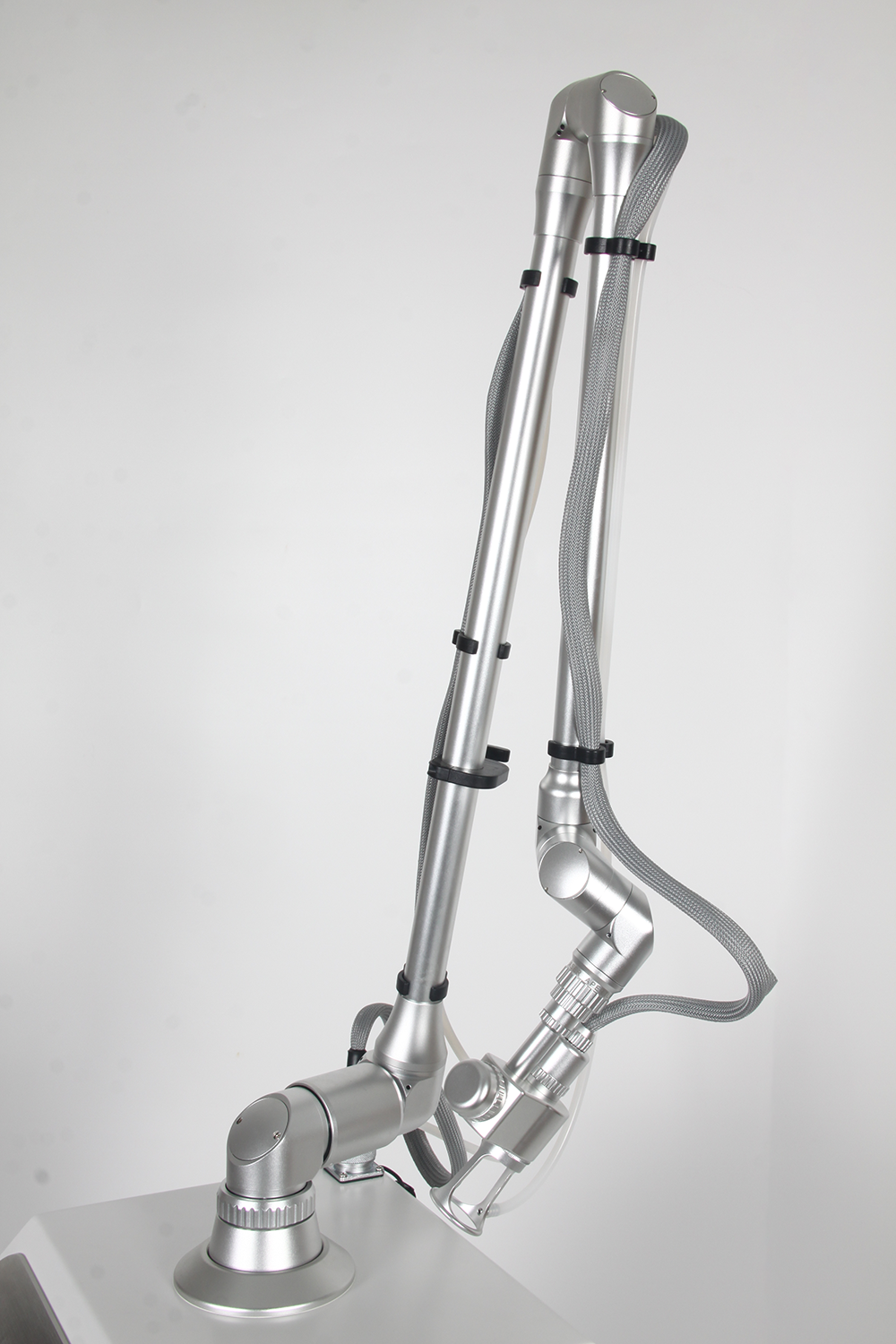

BA-FC23 laser guide arm

Laser Guide Arm

Imported from South Korea, the seven-joint light guide arm rotates freely at 360°, boasts a >99% energy transmission efficiency, and a <0.5mm center deviation, ensuring that every beam of light precisely reaches the target tissue.

Two different laser source configurations

The BA-FC23 offers two laser light source configurations to choose from: an RF tube and a glass tube.

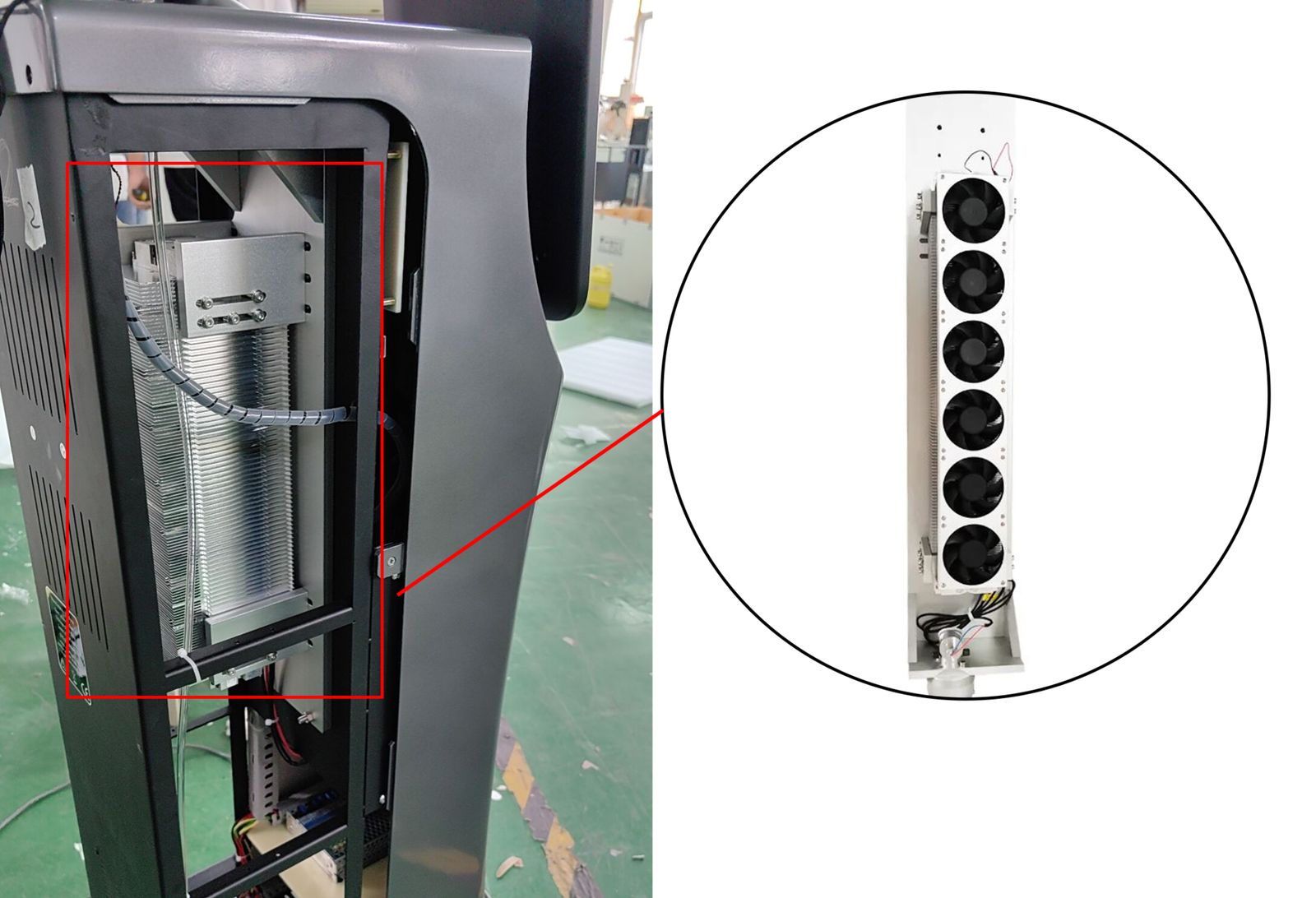

rf tube

High-spec RF Laser tube

RF tube: A high-performance laser light source, using RF electromagnetic field excitation, with low operating voltage. The tube body uses a fully sealed metal structure for durability. It is an industrial-grade precision light source with microsecond-level response and a pulse frequency up to 50kHz, ensuring long-term stable production.

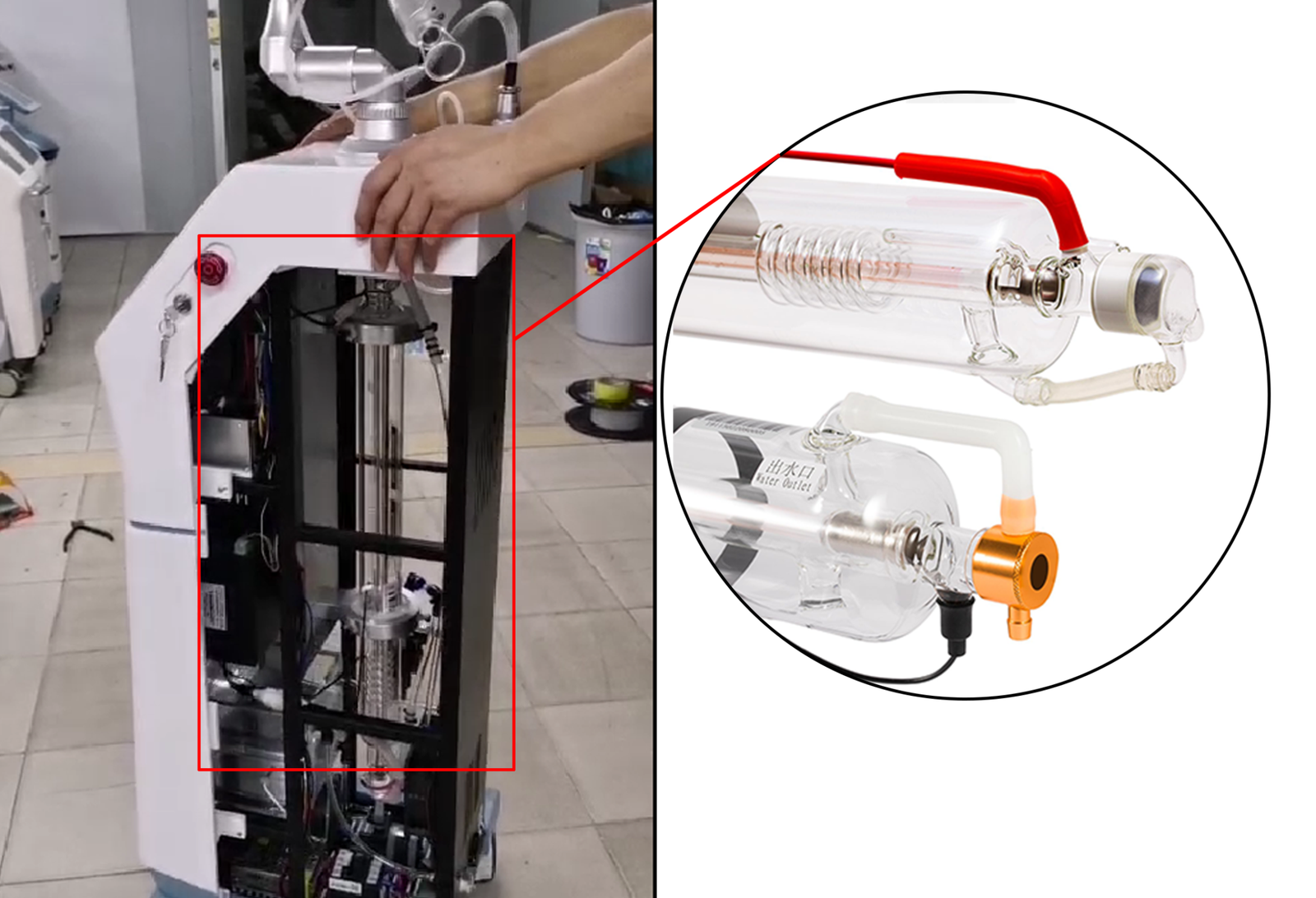

glass tube

Entry-level glass tube

Glass tube: A cost-effective choice, with mature technology and controllable costs. It uses DC high-voltage discharge excitation, multi-mode output, millisecond-level response, and an external water-cooling system, making it the first choice for entry-level mechanisms.

product parameters

Specifications Parameters
working mode
single pulse, continous pulse, repeated pulse, ultra pulse
output power
0-60W ( adjustable)
Input power
450VA
Laser type
sealed-off CO2 LASER
Laser wavelength
10.6μm
Divergence angle
4 mrad
focused spot diameter
≤0.4mm
tool bit focus
F= 100mm (optional)
Pulse Width
0.02-0.99S
Aiming beam
red diode laser (650nm, 2 mW)

Why Choose the BA-FC23 for Your Beauty Business?

Latest Spiral Scan technology
Latest Spiral Scan technology
Three Spiral scanning modes
Three Spiral scanning modes
Multiple fractional laser graphics
Multiple fractional laser graphics
Minimally invasive and quick recovery
Minimally invasive and quick recovery
Precise and controllable
Precise and controllable
High comfort
High comfort

Treatment demonstration
